GAT562 30s Kit – 30dBm Mesh Device with Filter

GAT562 30s Kit – 30dBm Mesh Device with Filter

1 W nRF52840 mesh device with a band filter, GPS, buzzer, RGB LED, and a holder for two replaceable 18650 cells.

$69.99

SKU WOS-GAT562-868-BARE

Frequency

EU868 for Europe and the UK. US915 for the US, Canada, and other 915 MHz regions.

Case

Quantity

1
Buy Now · $69.99

Ships within 5 days. Shipping and tax are shown at checkout.

  • Ships with Whisper OS installed. We email one Whisper OS Pro license key per device after delivery. Update the firmware later from the web flasher.
  • Pick the band that is legal where you use the device. The filter is band-specific.
  • 18650 cells are not included. Buy two cells separately.
  • Check 18650 polarity before you insert cells. Reversed cells burn out the charger and regulator.
  • A PC USB port may not supply enough current for 1 W transmit. Use batteries or a strong 5 V supply.

Specifications

Processor
nRF52840, Bluetooth 5.0
LoRa
SX1262 with band filter (EU868 or US915)
Output power
30 dBm (1 W)
Antenna
5 cm LoRa antenna
Display
1.3-inch OLED, 128 × 64
Controls

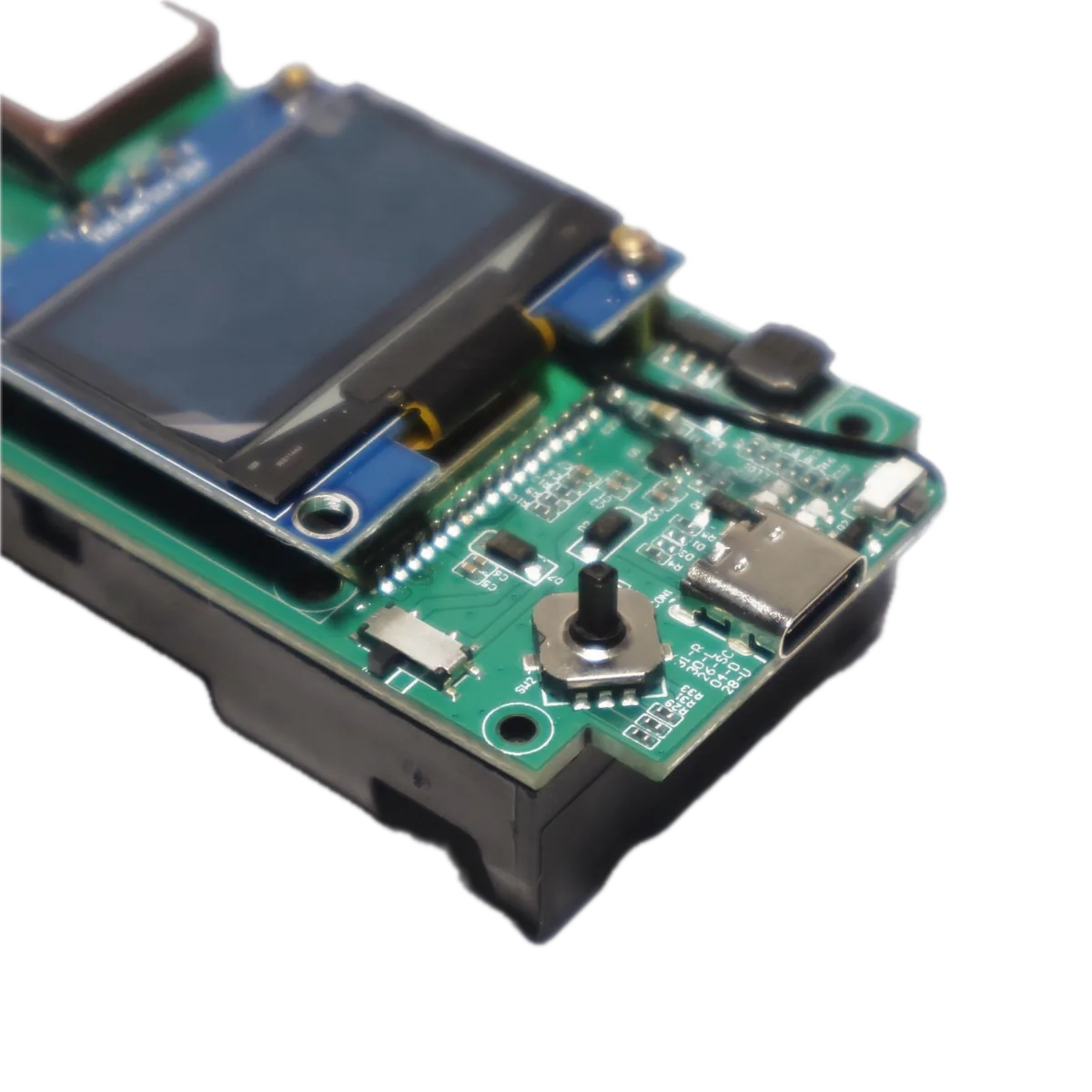

Joystick, side button
Alerts
5020 PWM buzzer, RGB LED
GPS
Built in
Expansion
Pad for an optional BME280 sensor
Battery

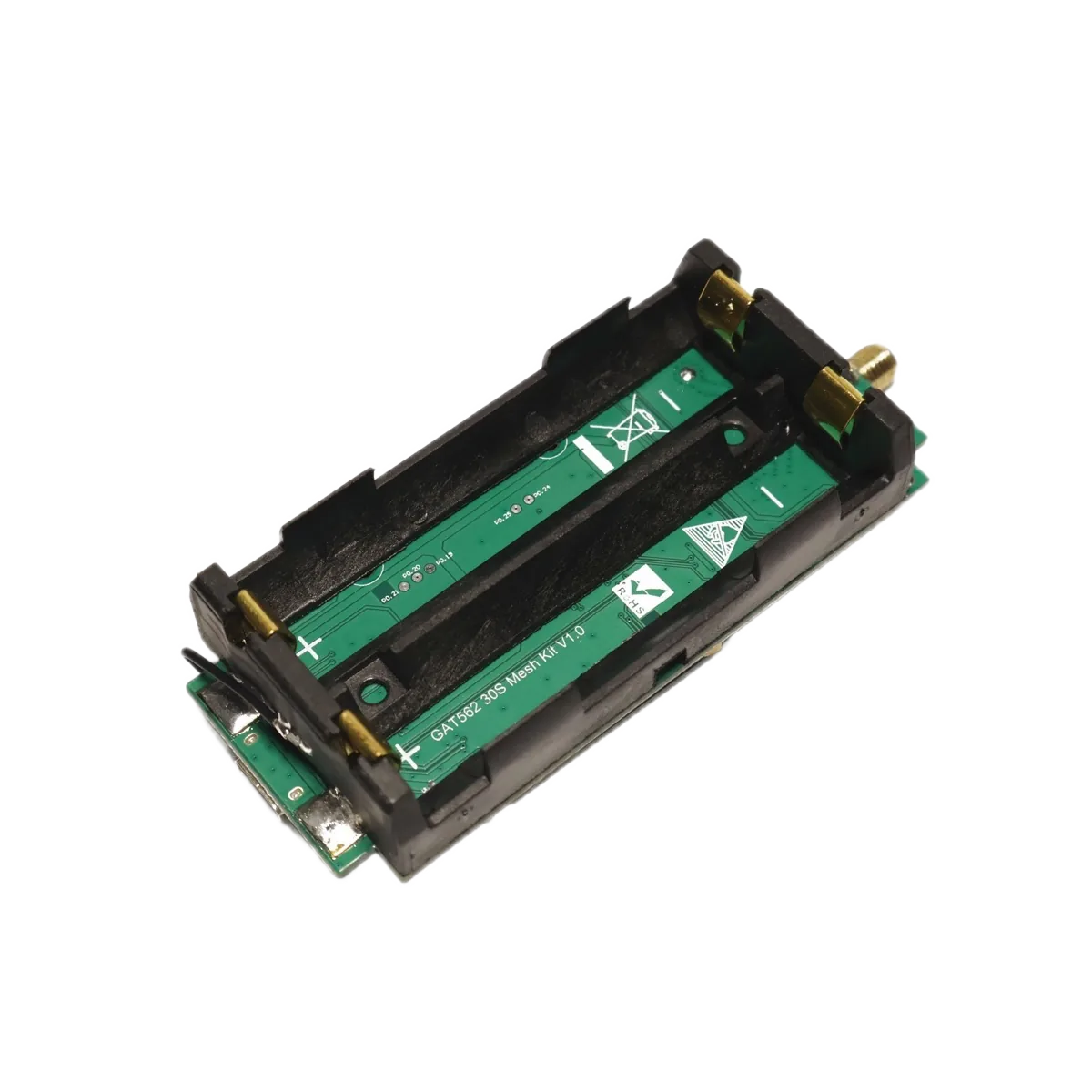

2 × 18650 holder, cells not included
Case

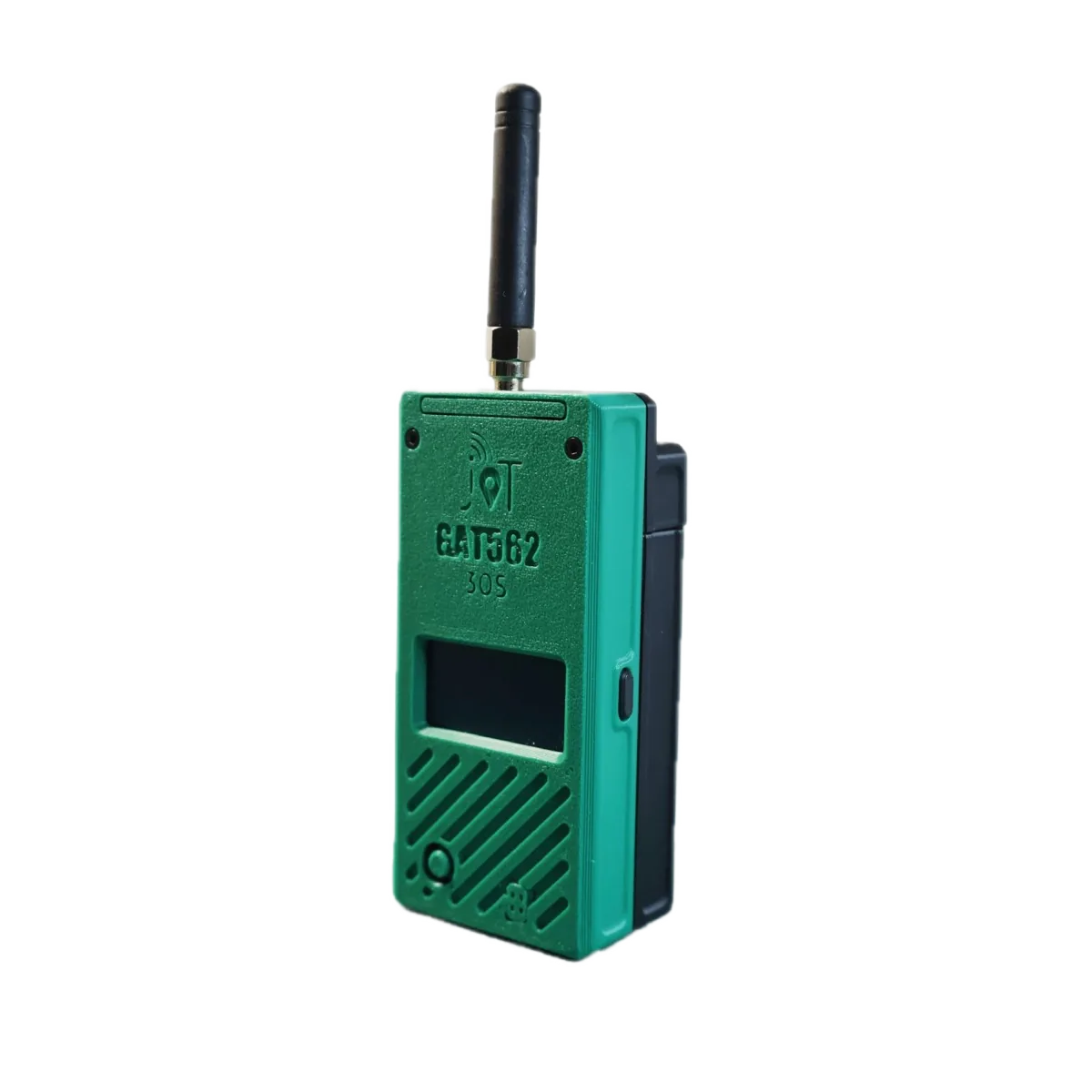

PLA front, PETG back (optional)
Shipping weight
60 g

In the Box

2 items
  • GAT562 30s board with 5 cm LoRa antenna
  • Green case (PLA front, PETG back), if selected
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
