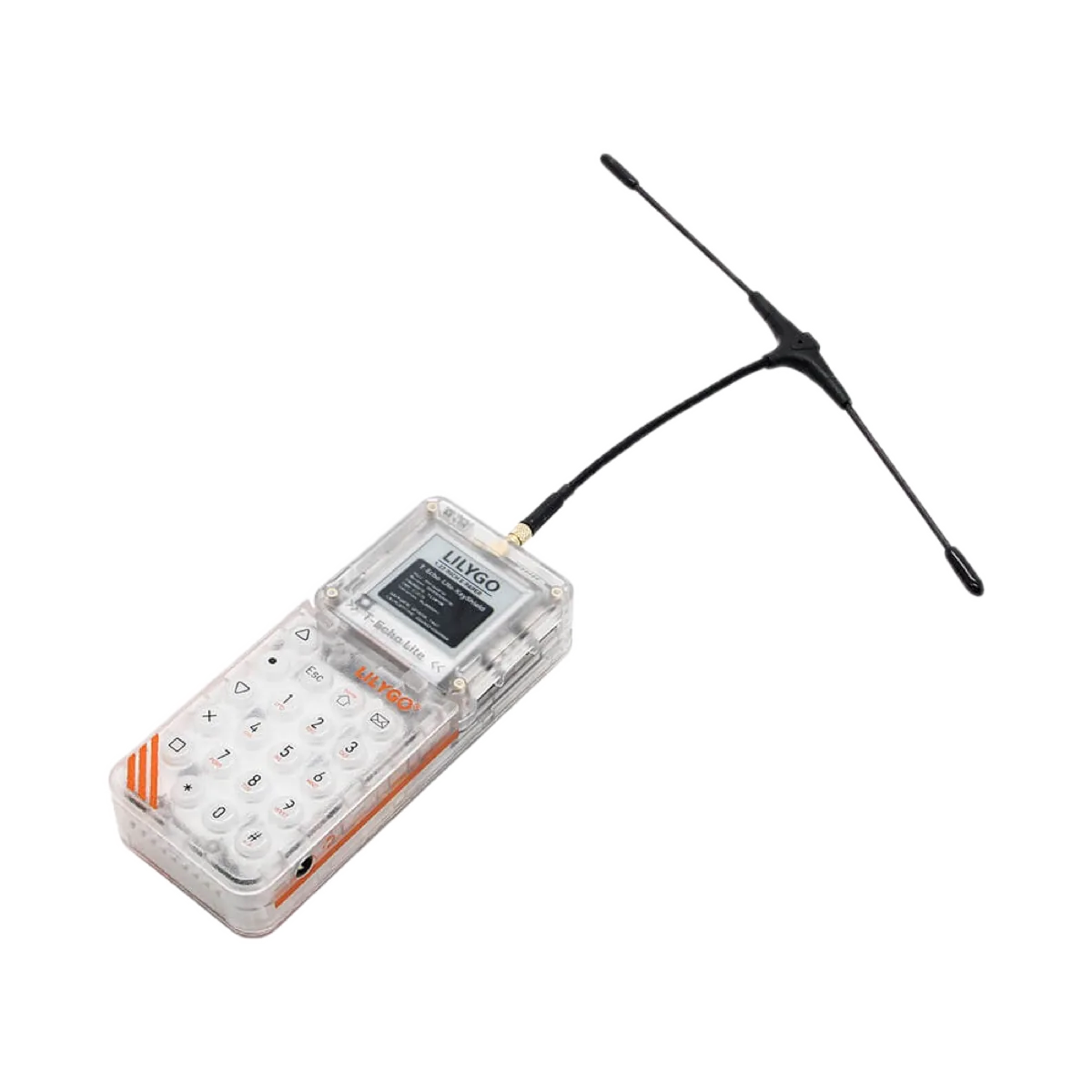

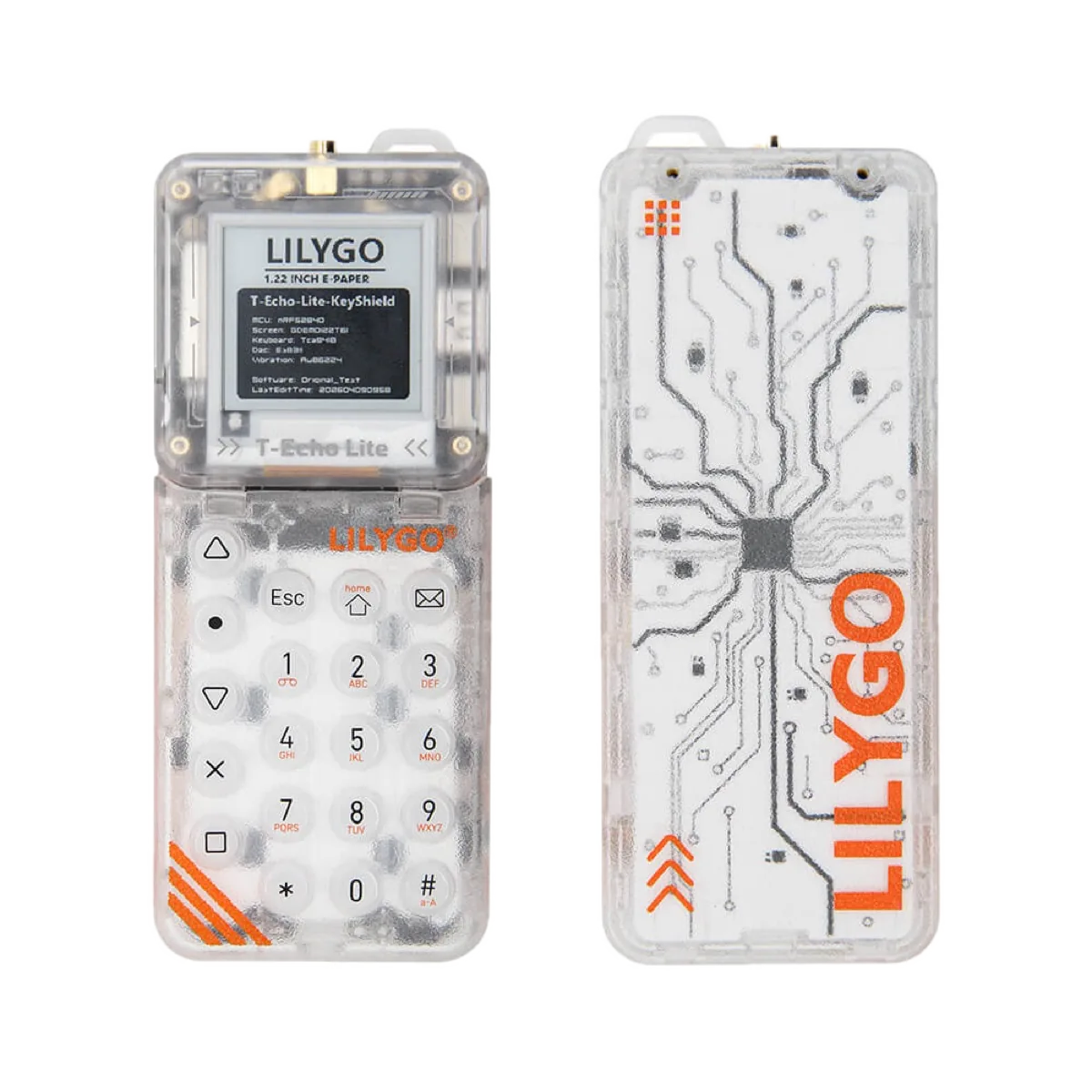

LILYGO T-Echo Lite Kit
Pocket nRF52840 mesh messenger with a 1.22-inch e-paper screen, a backlit 20-key keyboard, a speaker, a microphone, and a vibration motor.
$65.34
SKU WOS-TELITE-900
Quantity
Ships within 5 days. Shipping and tax are shown at checkout.
- Ships with Whisper OS installed. We email one Whisper OS Pro license key per device after delivery. Update the firmware later from the web flasher.
- Pick the band that is legal where you use the device.
- GPS and the motion sensor are not included. LILYGO sells them as add-on modules.
- Connect the antenna before you power on the device.
Specifications
- Processor
- nRF52840, 1 MB flash, 256 kB RAM
- Storage
- 4 MB external flash
- LoRa
- SX1262 (S62F module), up to 22 dBm, 830–945 MHz or 400–520 MHz
- Antenna
- External LoRa antenna, MMCX connector
- Bluetooth
- 5
- Display
- 1.22-inch e-paper, 176 × 192
- Keyboard
- 20 keys (5 rows × 4) with backlight
- Audio
- ES8311 codec, speaker, microphone, earphone jack
- Ports
- USB-C
- Alerts
- Vibration motor
- GPS
- Not included (optional L76K module)
- Charging
- 5 V, 500 mA
- Size
- 102 × 41 × 22 mm
- Shipping weight
- 200 g

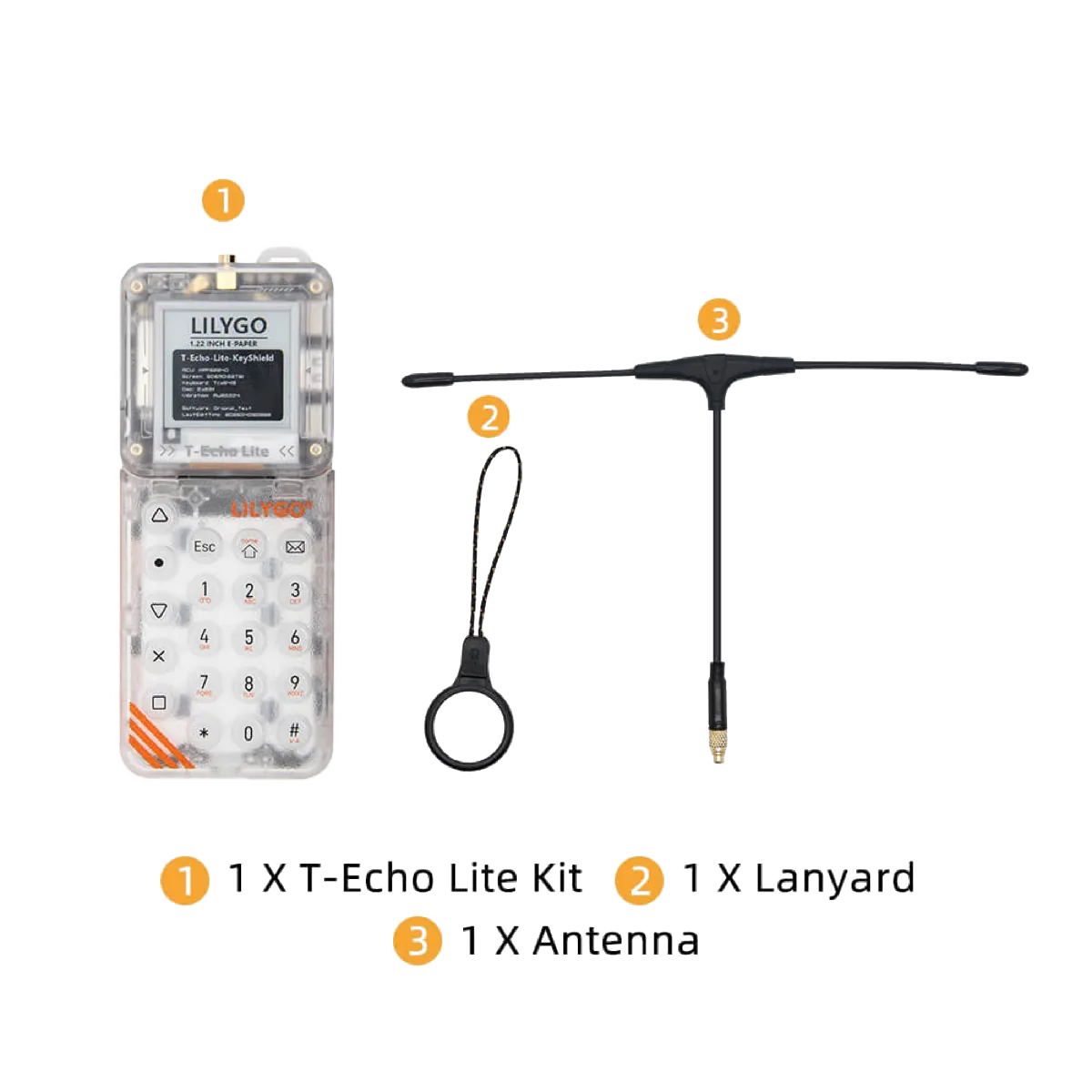

In the Box
3 items- T-Echo Lite Kit
- Antenna
- Lanyard
