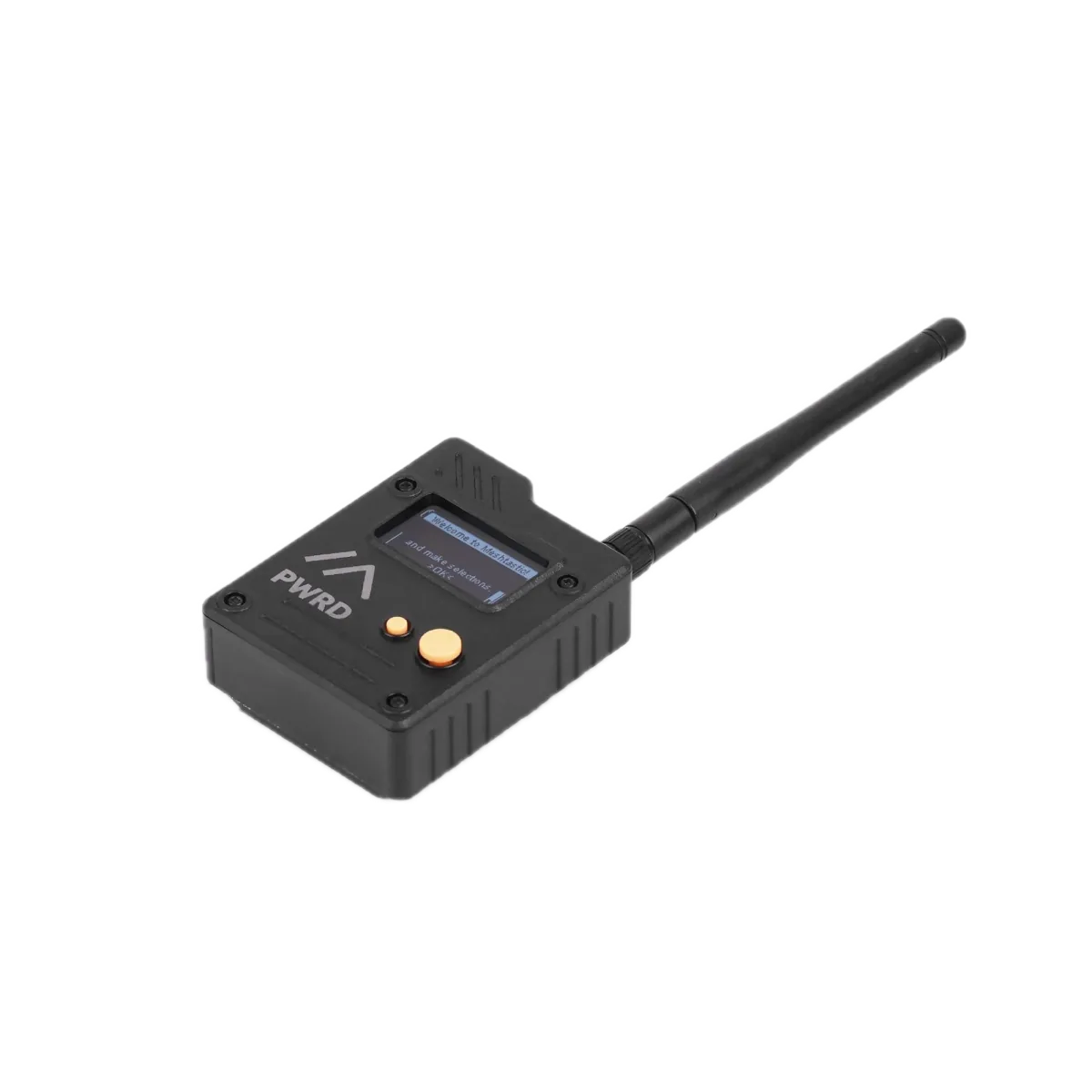

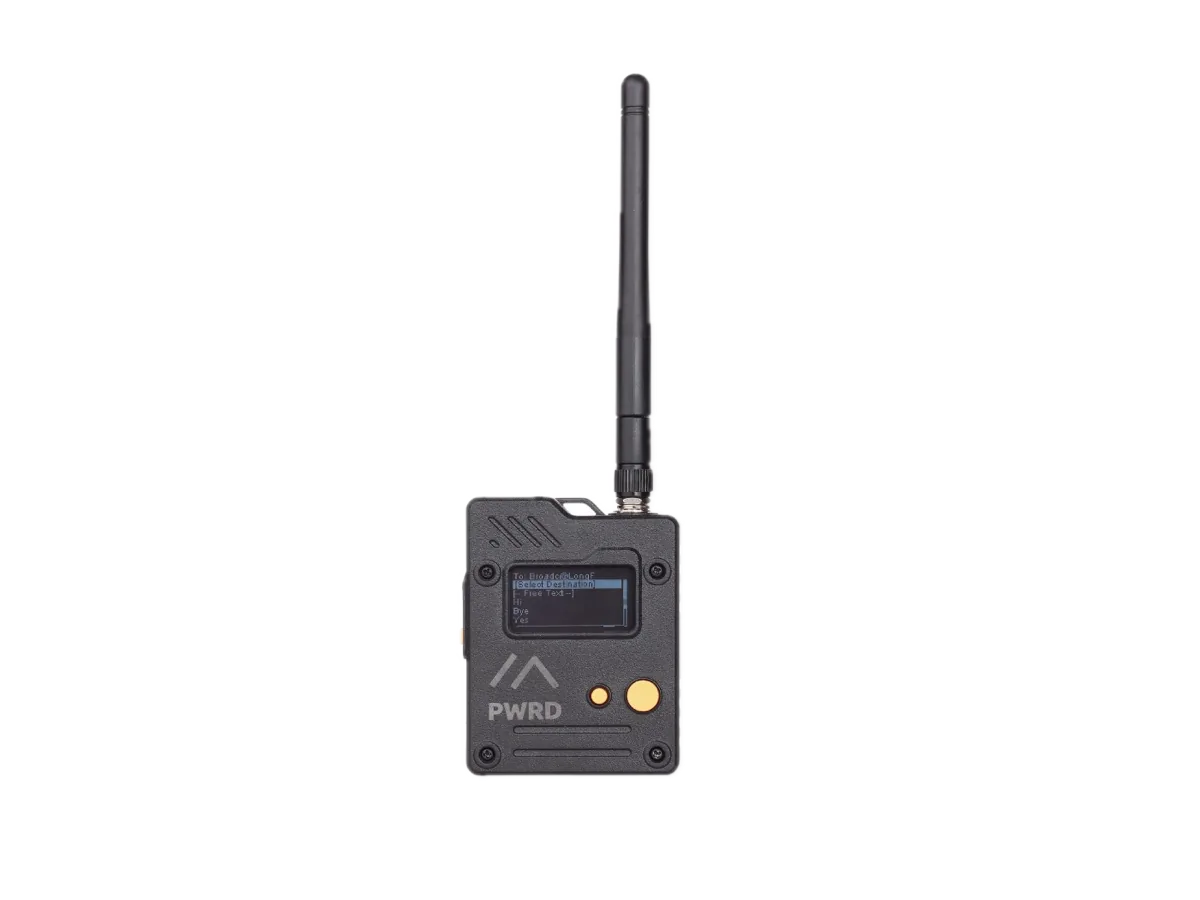

Seeed Wio Tracker L1 Pro
Pocket LoRa tracker with GPS, a 1.3-inch OLED, and a 2000 mAh battery in a ready-to-use enclosure.
$43.99
SKU WOS-L1PRO-900
Quantity
Ships within 5 days. Shipping and tax are shown at checkout.
- Ships with Whisper OS installed. We email one Whisper OS Pro license key per device after delivery. Update the firmware later from the web flasher.
- The case is PC+ABS plastic, as on the current Seeed Studio version.
Specifications
- Processor
- Nordic nRF52840, Cortex-M4F, 64 MHz
- Memory
- 1 MB flash, 256 kB RAM
- LoRa
- Wio-SX1262, up to 22 dBm, 862–930 MHz
- Antenna
- 3 dBi LoRa antenna
- Bluetooth
- 5.0
- GPS
- L76K (GPS, BeiDou, GLONASS, QZSS)
- Display
- 1.3-inch OLED, 128 × 64

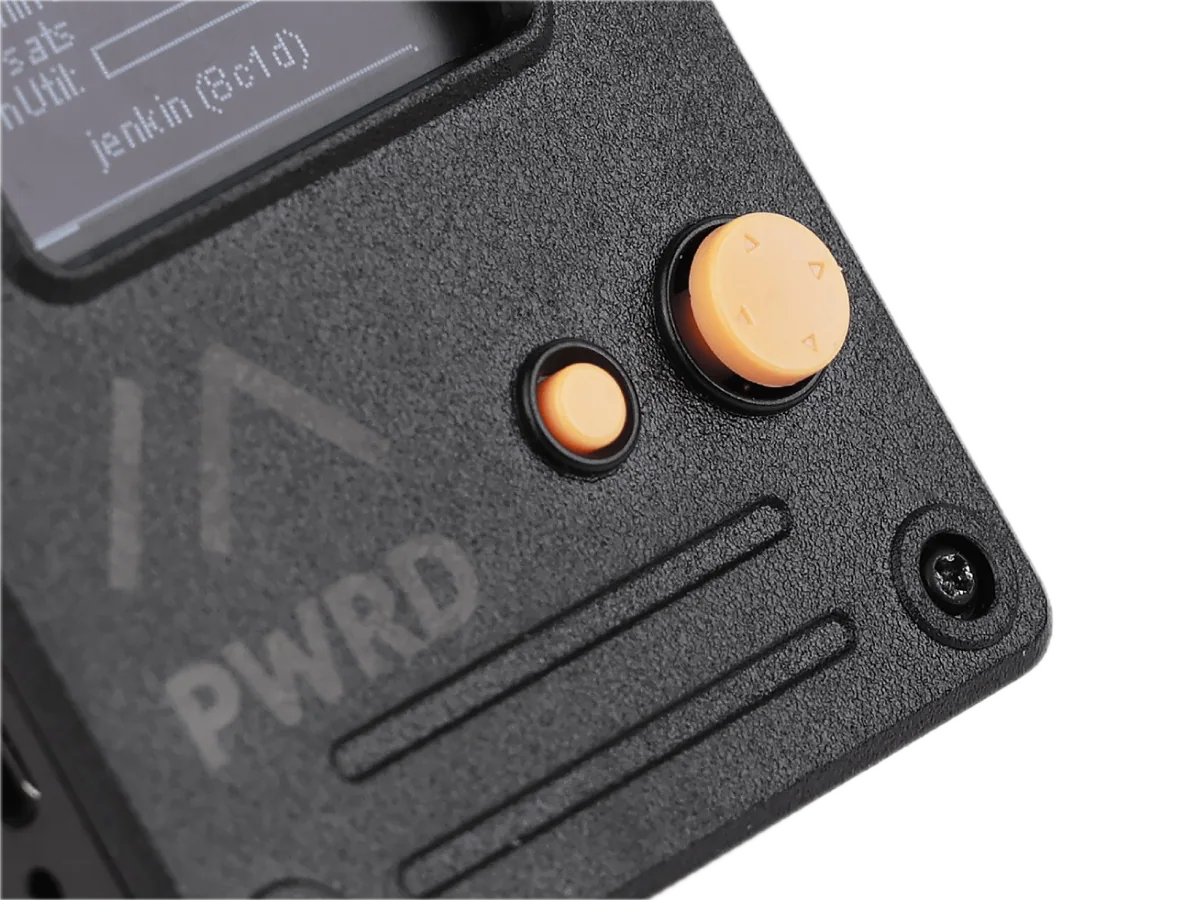

- Controls
- Joystick, button

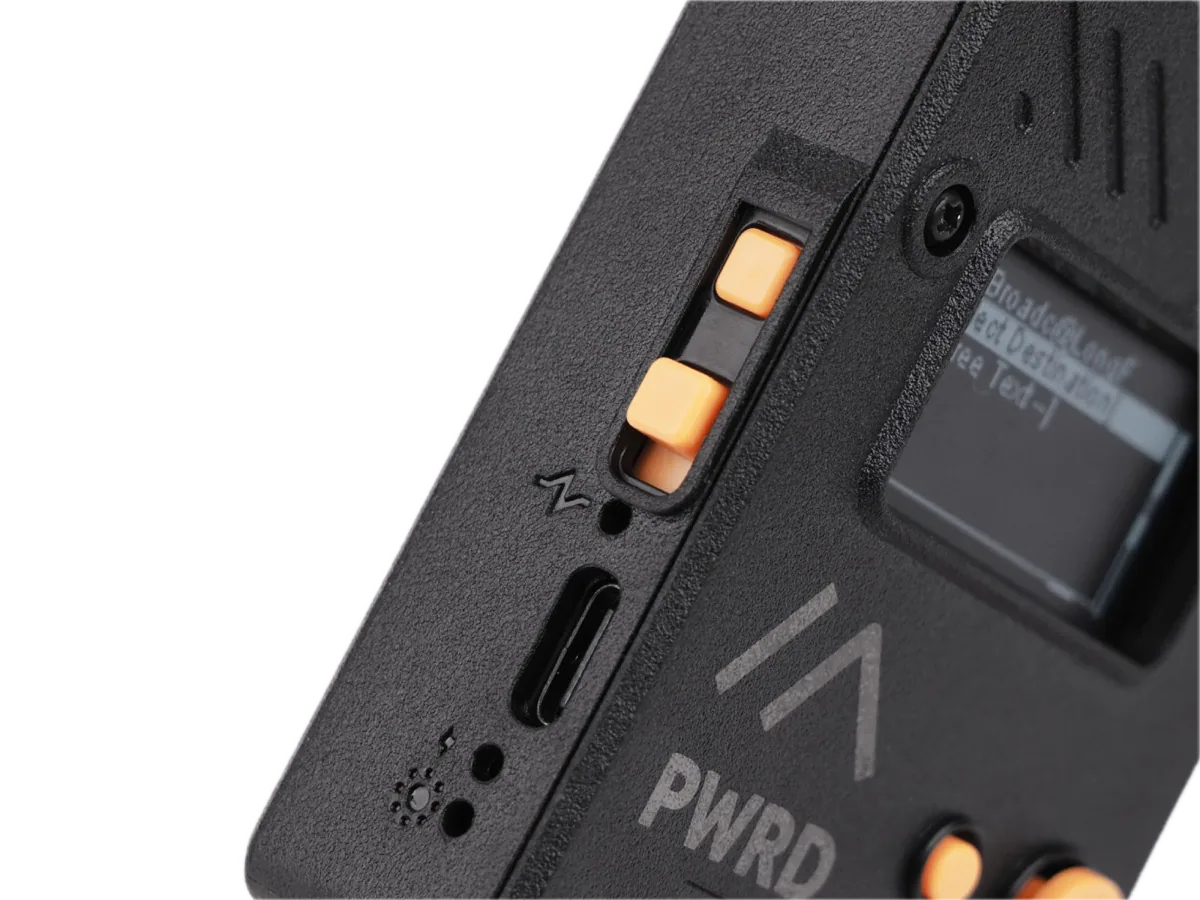

- Interfaces
- 1 × Grove (UART/I²C/GPIO), PTH headers, SWD pads
- Power input
- USB-C 5 V 1 A, solar 5 V 1 A (max 5 V), battery 3.7 V 1 A
- Battery
- Built-in 2000 mAh
- Certification
- FCC, CE, RoHS
- Shipping weight
- 80 g
In the Box
2 items- Wio Tracker L1 board with 1.3-inch OLED, enclosure, and battery
- LoRa antenna
